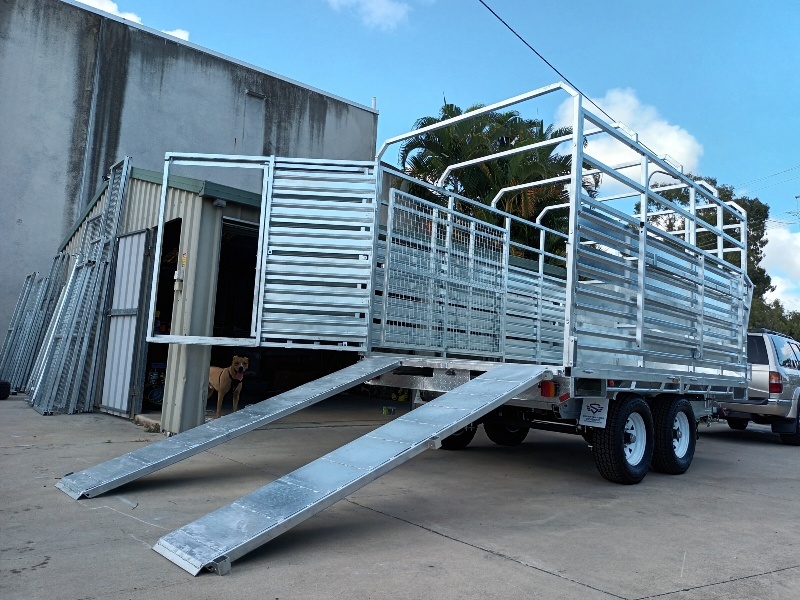

12 x 7 ft Stock Crate / Machinery Flat Deck Trailer with Removable Crate ATM 3500kg (3.5 and 4.5 tonne) & 1 Person Lift-off System

This is truly an outstanding package which provides great versatility. Front headboard, side gates and tailgates all easily removed.

Trailer FLOOR IS 4MM THICK hot dipped galvanised checker plate steel adding incredible strength and durability.

Extra heavy duty hot dipped galvanised ramps included and housed in under trailer deck. The trailer floor has been upgraded to an extra heavy duty 4mm thick checker plate making it one of the toughest and most durable trailers available.

Great for farmers, tradesmen, machinery operators or anyone looking for a high-capacity versatile flat deck trailer.

This is truly a very unique high-capacity, extra heavy duty Multi-Purpose use trailer which includes 2 x Loading Ramps housed under trailer deck – used to load Livestock and can be located anywhere across the rear of the trailer to load all types of Machinery, Mowers, Quads etc. Trailer comes with 300mm high drop-down sides and rear tailgate, slide in easily removed 600 mm high cage to both sides and tailgate, together with 1200 mm high headboard all able to be installed once Stock crate is removed.

Ramps can then be placed together and 2 x steel guiding Rails are dropped into place to make Livestock loading quick, safe and easy.

Fantastic trailer for farmers and livestock transport. This is truly an excellent livestock transport package which provides great versatility.

The entire cattle crate is removable by one person with the bolt on corner legs that simply wind up and you drive out from underneath the stock right leaving it ready to be reconnected at any time.

Trailer floor is massively reinforced with a close web construction of box section steel members and now comes with 4 mm thick trailer floor.

• On site no waiting Qld Registration available, completed on the spot
• Fully welded then Hot Dipped Galvanized – ATM 3500kg.
• Trailer built to 4500kg rating even when registered 3500kg
• 2100mm High Easily Removable Stock Crate, 4 x quick adjust wind up legs included
• 1900mm Ultra-long Draw Bar makes for Easy Reversing
• Drawbar 100mm x 50mm x 5mm with strengthening bar under
• New 15inch x 6 stud Sunraysia Rims
• New 8 Ply 225/75 Light Truck Tyres (4500 kg rated)
• Reinforced Under Floor with Extra Support Beams
• Fully Welded Heavy Duty Body with SHS Tube Chassis
• 9 Leaf x 63mm Heavy Duty greaseable load sharing Rocker Roller Spring Suspension (4500 kg rated)
• Extra Heavy Duty 4 mm Checker Plate Floor
• 2 x Expander mesh loading ramps housed under trailer deck used to load livestock and can be located anywhere across the rear of the trailer to load all types of machinery, mowers, quads etc
• 2 x Ramp Guardrails, removable and easily stored on sides of trailer
• Removable steel construction mesh separation door Inside stock crate. (Able to be hinged back against side panel)
  Inner Trailer Dimensions: 3630mm x 2100mm
• Tie Down Rails to both sides
• Extra Heavy Duty Twin 8inch Swing up Jockey Wheels (1200kg rated)
• Multi-volt 10/30 V LED Tail and Side Marker Lights
• Twin ADR Standard Heavy-Duty Chains & Load Rated Shackles coupled to 6 ton Hammer locks
• Flat 7 Pin Plug
• Includes Spare Wheel
• Includes 6mths Rego
