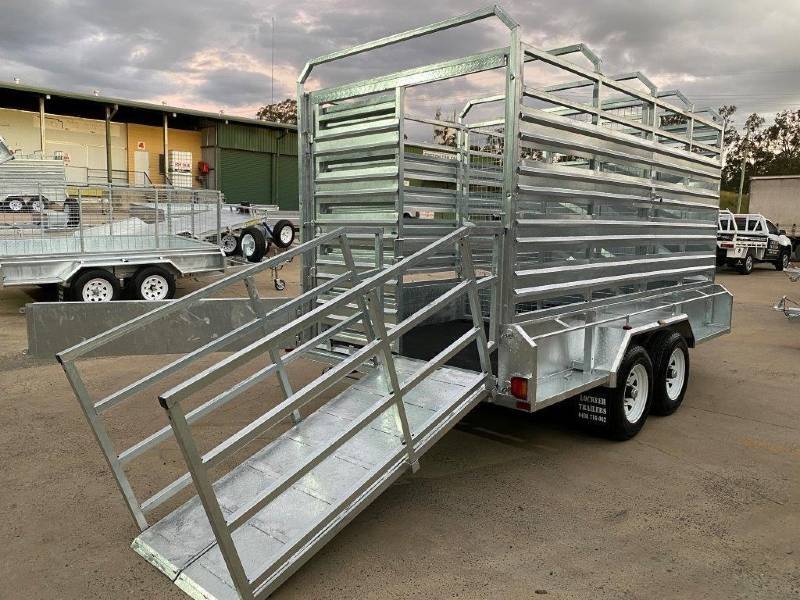

12 x 6 ft Stock Crate Cattle / Machinery Trailer with Removable Crate ATM 3500kg (3.5 tonne) & 1 Person Lift-off System Includes Spare Wheel Lift Off Legs Mudflaps and 6mths Registration


The perfect all round trailer, carry your livestock, horses, machinery, hay or load for a trip to the rubbish tip. Easy to use rear ramp and with one person lift off system this cattle trailer has so many uses. Also available in a full hyrraulic tipping model.

At Wide Bay Trailers Gin Gin Qld, we understand the important features needed when buying a new hot dipped galvanised trailer and that is why all of our Premium Trailers come with a 600mm Cage, Spare Wheel and Six Months Qld Registration. All Included in the one low tow away price.

Our Premium Trailers are heavy duty from the springs, seven leaf, right through to the cage with a 40 x 40 mm frame and mitred corners. Pick Up in Gin Gin or Brisbane Locations.

Trailer Features:

 Fully Welded Construction         New Tyres And Sunraysia Rims             Free Jockey Wheel

 Superior LED Lights                          Mitred Cages not Plastic Stop ends   6 Mths Registration

 12 Months Structural Wty           Trailer Pay Available                                    Free Local Delivery

 Free Spare Wheel Included          Free 600mm Cage Included                    Front And Rear Drop Down Tail Gates

Trailer Delivery:

Freight and Delivery Can Be Arranged At Buyers Cost Austraila Wide - Contact Us For Details. Local Delivery From Gin Gin and Brisbane Branches.

All Wide Bay Trailers come with a One Year Factory Backed Warranty for absolute peace of mind when you purchase.

12 x 6 ft Cattle Crate Trailer with 1 Person Install and Remove Stock Crate – ATM 3500kg


New model now fitted with one person Jack off stand system to allow easy crate removal and replacement.

This is truly a very unique multi-purpose use Trailer which includes 2 x Loading Ramps housed under Trailer Deck used to load Livestock and can be located anywhere across the rear of the Trailer to load all types of machinery, mowers, quads etc.

Ramps can then be placed together and 2 x steel guiding rails are dropped into place to make Livestock Loading – quick, safe and easy.

Fantastic trailer for farmers and livestock transport. This is truly an excellent livestock transport package which provides great versatility. The entire cattle crate is removable by releasing 8 bolts and this trailer then becomes a 3.5 t ATM Hi-side box trailer with a load capacity of just over 2000kg.

Trailer floor is massively reinforced with a close web construction of box section steel members.

  • Fully welded then Hot Dipped Galvanized – ATM 3500KG
  • 1630mm High Easily Removable Cattle Crate (8 bolts)
  • Rear Sideways open gate and entire rear section hinges open
  • 1900MM Ultra-long C-Section Draw Bar
  • Draw-bar 125 x 55mm Heavy Duty C-Section Construction
  • 15inch New Sunraysia Rims and Light Truck Tyres
  • Reinforced Under Floor with Extra Support Beams
  • Fully Welded Heavy Duty Body with SHS Tube Chassis
  • 7 Leaf x 63mm Heavy Duty Springs with Rocker Roller Suspension
  • Heavy Duty 2.5mm Checker Plate Floor and Wheel Guards
  • Front Fold Down Gates level with Trailer Deck (Removable)
  • Rear Tailgate hinges open sideways
  • 2 x loading ramps housed under trailer deck used to load livestock and can be located anywhere across the rear of the trailer to load all types of machinery, mowers, quads etc.
  • 2 x Ramp Guardrails, removable and easily stored on sides of trailer
  • Mesh Separation Door Inside of Cattle Crate.
  • Inner Trailer Dimensions: 3675mm x 1830mm
  • Tie Down Rails all 4 sides
  • Extra Heavy Duty Swing up Jockey Wheel
  • LED Tail and Side Marker Lights
  • Twin ADR Standard Heavy Duty Chain & Load Rated Shackles
  • Flat 7 Pin Plug
  • Total Trailer Height: 2630mm
