12 x 7 ft Flat Deck Hydraulic Tipping Trailer ATM 3.5 tonne
Business Use Finance Available From $124pw TAP 36mths
SKU code: 12x7FTHTIP

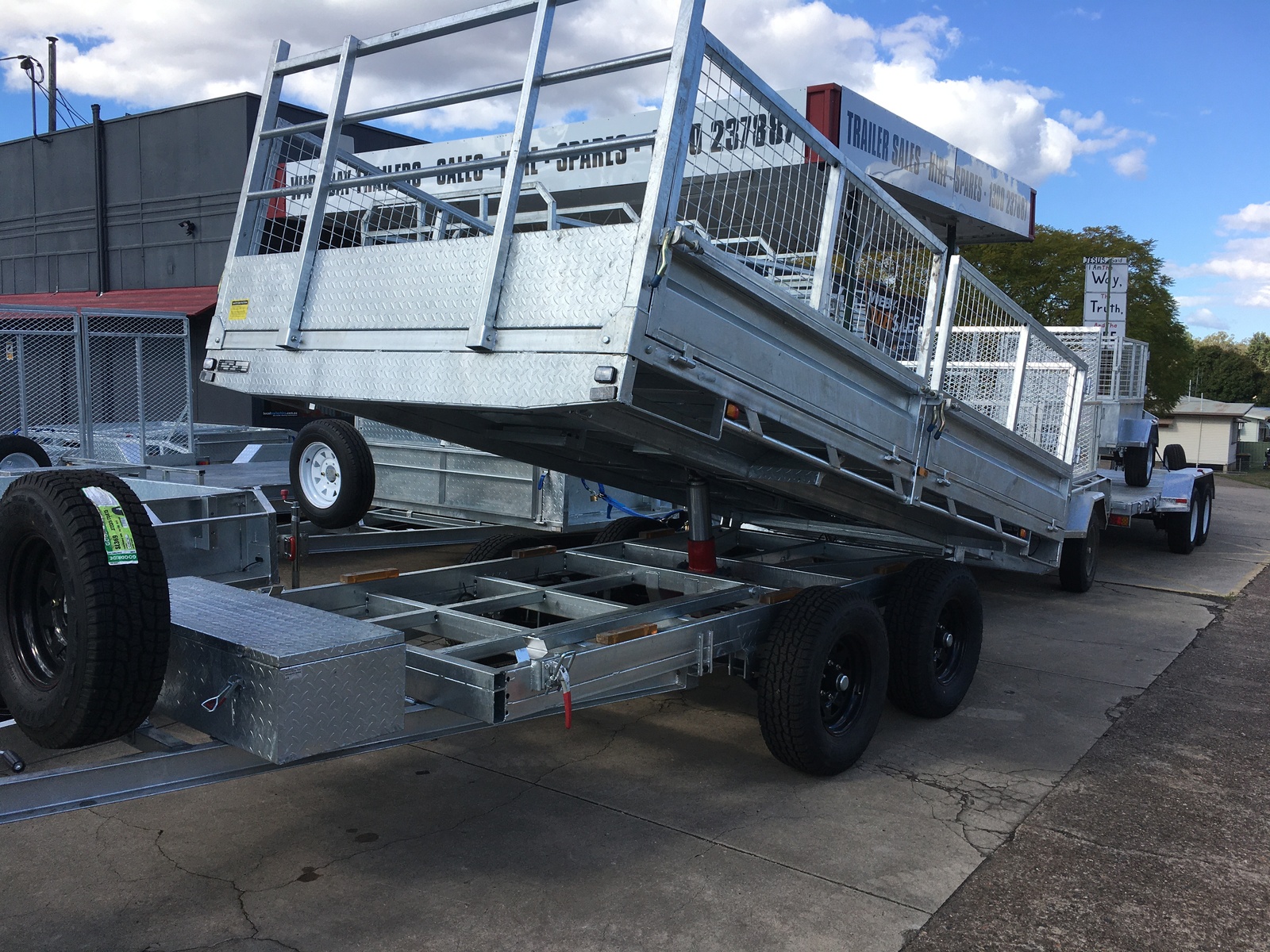

12 x 7 ft Flat Deck Hydraulic Tipping Trailer ATM 3.5 tonne (3,500kg)
This is without doubt the King of Tipper Trailers. This flat deck trailer is equipped with fully removable sides, front and rear gates and also has a 600 high removable cage which is also able to be removed one section at a time for added convenience. For the easy loading of machinery, recreational vehicles or any other mobile equipment, extra heavy duty hot dipped galvanised ramps included and housed in under trailer deck.
The trailer floor has been upgraded to an extra heavy duty 4mm thick checker plate making it one of the toughest and most durable hydraulic tipping trailers available. Great for farmers, tradesmen, machinery operators or anyone looking for a high-capacity versatile tipping flat deck trailer.
- Hot Dipped Galvanised (Rust Free) – ATM 3500KG
- 4mm THICK CHECKER PLATE FLOOR
- 1900MM long Draw Bar
- Solid 60mm Axles Rated at 2400KG each
- Removable 450mm High Sides and 900mm High Cage (Total Height: 1350mm)
- 4-Stage Hydraulic Tipping Ram with 3500KG Loading Capacity
- 2 x Extra Heavy Duty Loading Ramps Housed under Trailer Deck
- 15 inch Brand New Sunraysia Rims and Light Truck Tyres
- 4 x Wheel 12 inch Electric Brakes with emergency Break-a-way system
- Massively Reinforced Under Floor with Extra Beams
- Fully Welded Heavy Duty Chassis
- 9 Leaf Heavy Duty Springs with Rocker Roller Suspension
- Fully Removable Sides plus front rear gates
- Sides and Rear fitted with Tie-down Rails
- 10 inch HD Swing up Jockey Wheel Included
- LED Tail Lights
- ADR Standard Heavy Duty Chain & Load Rated Shackles
- Flat 7 Pin Plug
All Wide Bay Trailers come with a One Year Factory Backed Warranty for absolute peace of mind when you purchase.
Specifications
| Model: | 12 x 7 ft Tandem Flat Deck Trailer |
| ATM: | 3500kg |
| Chassis: | 100mm x 50mm x 5mm |
| Trailer Deck Size: | 3600mm x 2100mm (x 450mm with sides on) |
| Drawbar: | 2000mm, 100mm x 50mm x 3mm |
| Body: | Drop in Headboard, Drop down/Remove able sides & Rear Panel |
| Finish: | Hot Dipped Galvanized |
| Side: | Removable 450mm High Sides and 600mm High Cage – 1100mm Headboard |
| Flooring: | 4mm Checker plate |
| Cage: | 600mm cage included only included |
| Jockey Wheel: | 10″ Heavy Duty Swing Up |
| Wheel: | New 195R15C 6 STUD Wheels and Tyres |
| Spare Wheel and Holder: | Included |
| Brake: | 12″ Electric Drum Brake x 4 |
| Axle: |
Solid 60mm Axles Rated at 2400KG each, HD Dexter Bearings |
| Coupling: | 50mm Australia Standard |
| Lights: | LED |
| Lights Plug: | Flat 7 Pin Plug |
| Spring: | 9 Leaf Heavy Duty Rocker Roller Spring |
| Safety Chain: | 2 x 12mm |
| Ladder Racks: | Optional |
| Warranty: | 12 months Limited Warranty |
| SKU | 12x7FTHTIP |
| Brand | Wide Bay Trailers |
