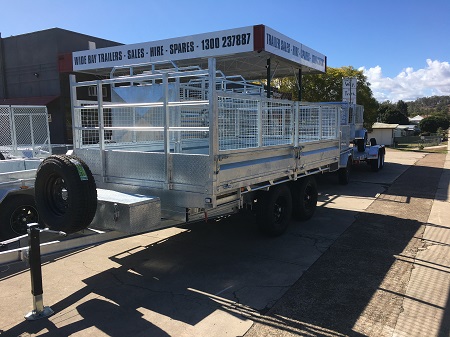

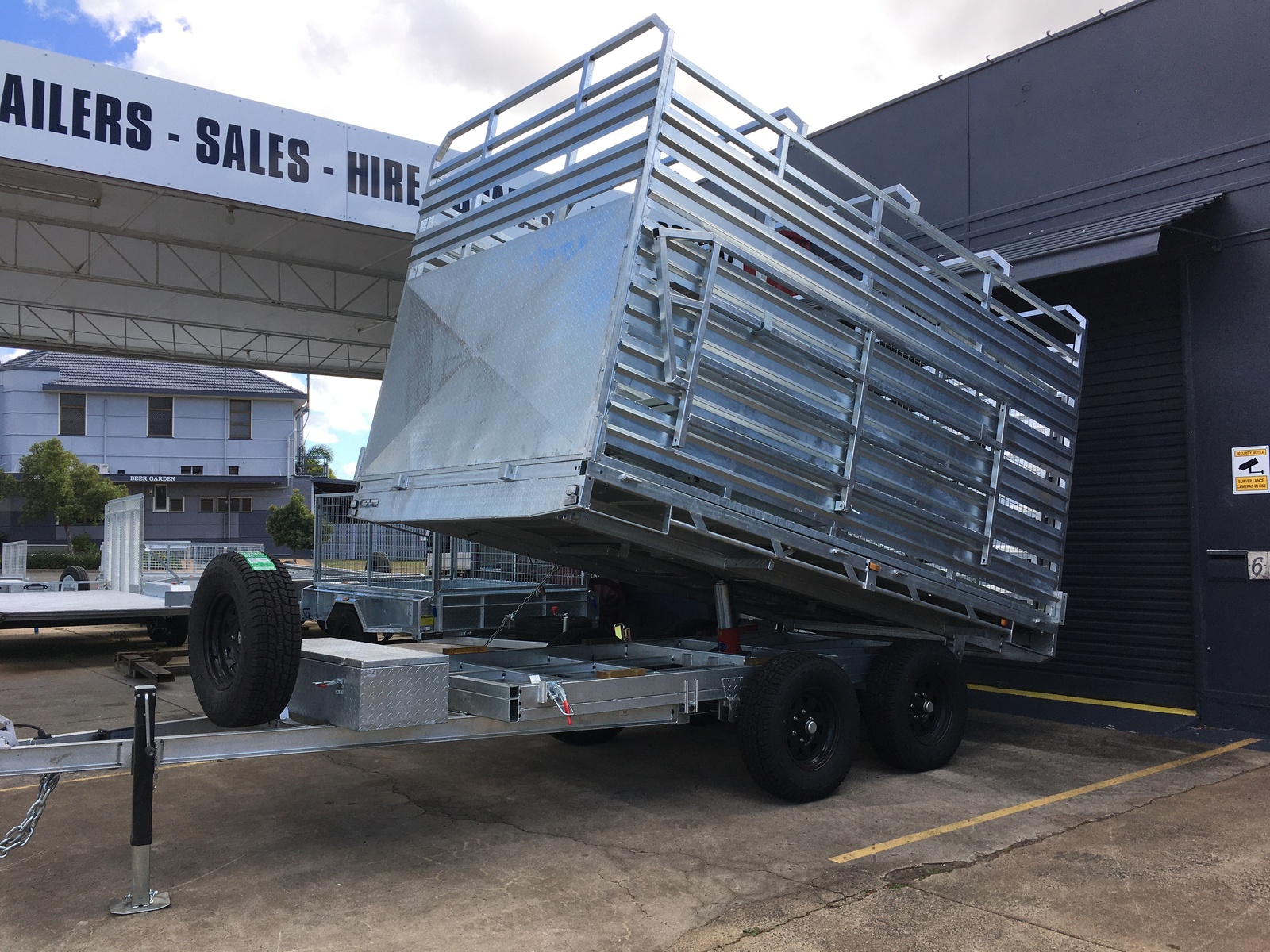

12 x 7 ft Extra Heavy Duty Flat Deck Hydraulic Tipping Stock Crate Trailer ATM 3.500 tonne

This is truly a very multipurpose all in one trailer with a variety of uses from a completely bare flat deck hydraulic tipping trailer, or easily converted to incorporate 450 mm high drop-down sides and rear tailgate with removable 600 mm high perimeter cage or transformed into a large volume stock crate trailer. 4mm Checker Plate Floor.

Loading ramps housed underneath trailer back can be placed in any position along the rear of the trailer providing quick and easy loading of everything from a ride on mower, bobcat, tractor farm machinery and more. When loading stock both ramps placed together in doorway opening and side protection rails easily fitted during the loading and unloading of stock process. There is also a removable double door system inside the stock crate to divide off stock if required.

Great for farmers, tradesmen, machinery operators or anyone looking for a high-capacity versatile tipping flat deck trailer.

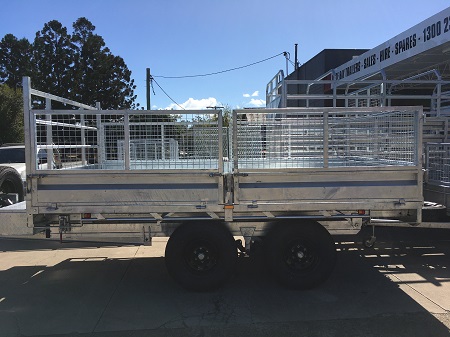

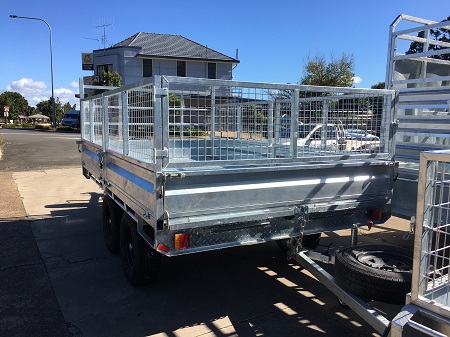

Without the stock crate, removable with the wind off legs included this trailer can be used as a large volume tipper with sides, cage and headboard all included as pictured below.





All Wide Bay Trailers come with a One Year Factory Backed Warranty for absolute peace of mind when you purchase.

SPECIFICATIONS:

  • On site no waiting Qld Registration available, completed on the spot
  • Hot Dipped Galvanized (ATM 3500KG)
  • 4mm Thick Checker Plate Floor
  • 1900mm long Draw Bar
  • Solid 50mm Axles Rated at 2250kg each
  • Removable 450mm High Sides and 600mm High Cage
  • 4-Stage Hydraulic Tipping Ram with 4500KG Loading Capacity
  • 2 x Heavy-Duty Loading Ramps Housed under Trailer Deck
  • 2 x Side Protection Rails Housed on the Side of the Stock Crate
  • 15inch Brand New Sunraysia Rims and 8 Ply 195 R15 Light Truck Tyres
  • 4 x Wheel 12inch Electric Brakes with emergency Break-a-way system
  • Massively Reinforced Under Floor with Extra Beams
  • Fully Welded Heavy Duty Chassis
  • 7 Leaf Heavy Duty Springs with load sharing Rocker Roller Suspension
  • Fully Removable Sides plus rear gate
  • Sides fitted with Tie-down Rails
  • HD Swing up Jockey Pad Included For Off Vehicle Stability
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackles
  • Flat 7 Pin Plug
SKU 12x7FTCTIP
Brand Wide Bay Trailers
