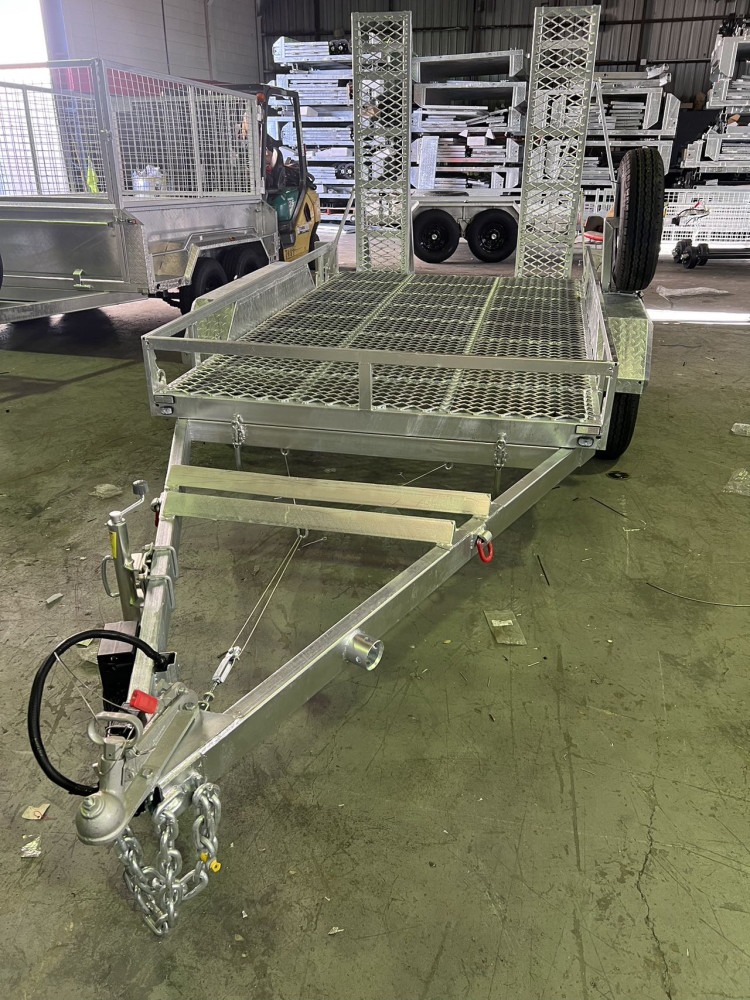

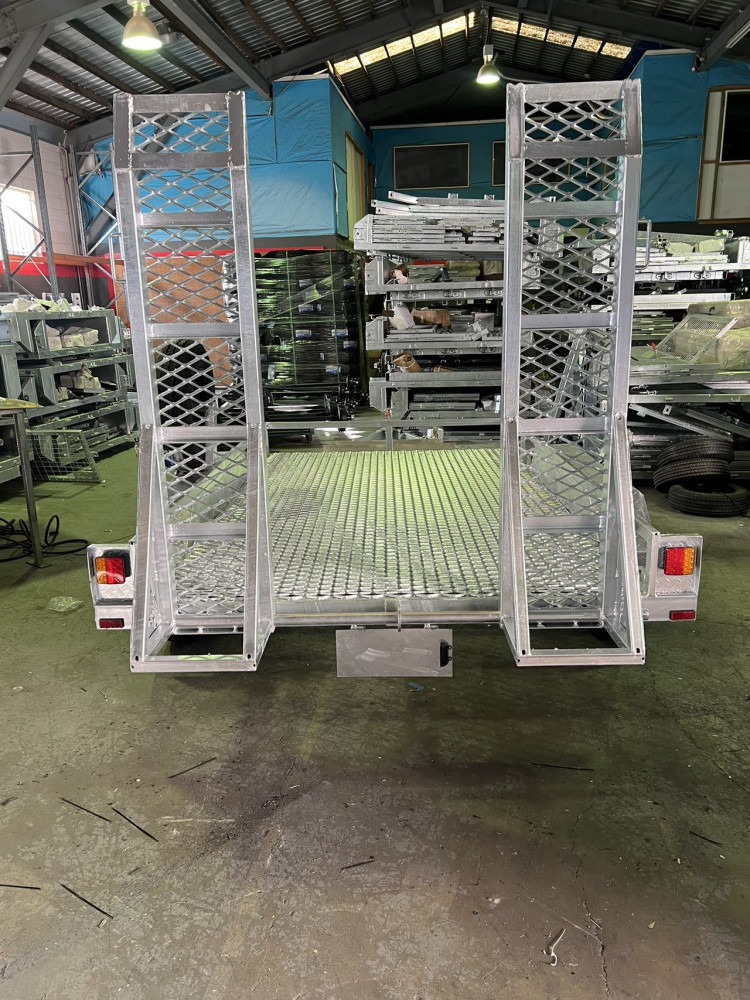

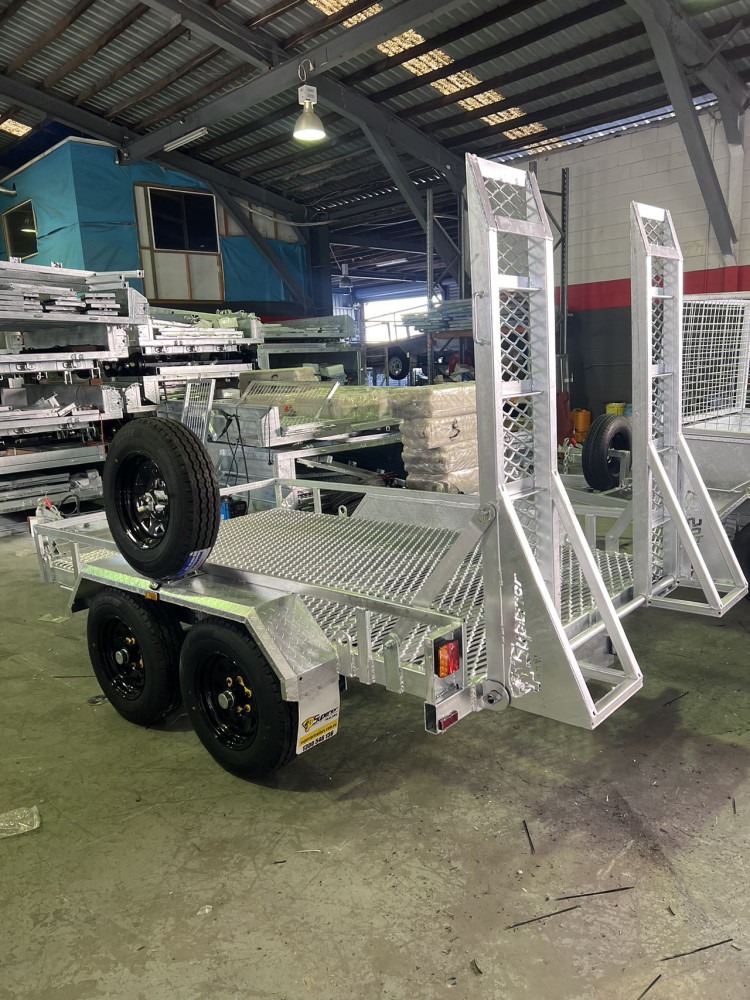

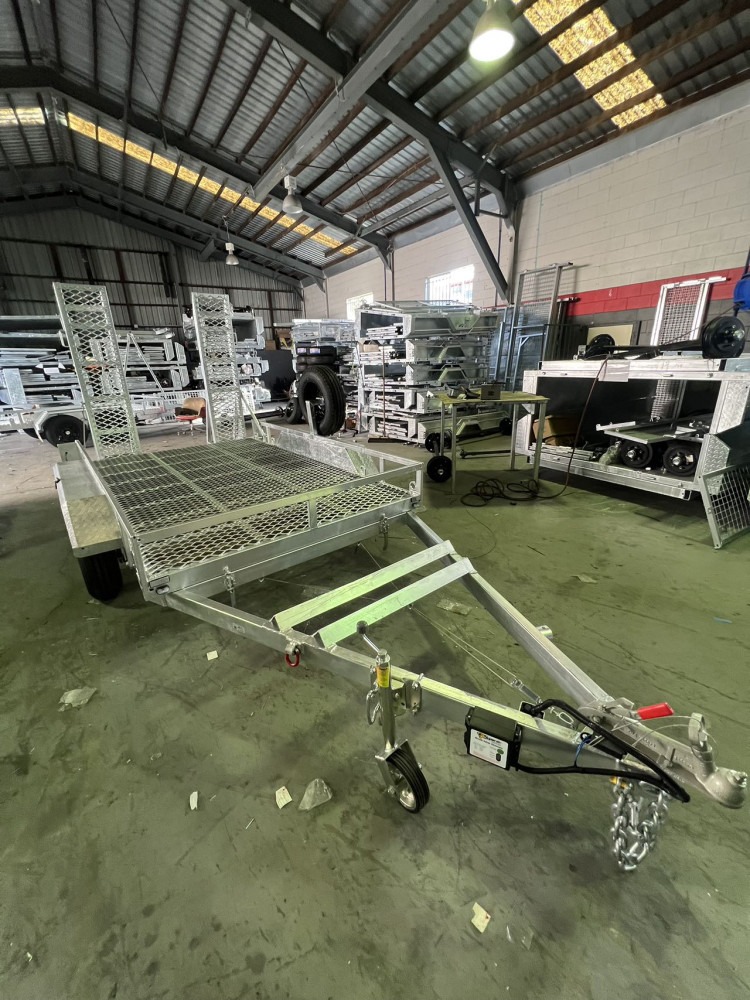

8×5 Heavy Duty Galvanised Tilt Plant Trailer Tandem Axle ATM 3200KG
$7,500.00
8×5 Heavy Duty Galvanised Tilt Plant Trailer Tandem Axle ATM 3200KG
- ATM 3200kg
- Free 8” jockey wheel
- 3mm chassis and 4mm drawbar
- 8 tie down anchors are welded all the way around
- Tipping design allow to have better angle
- Heavy duty drop down ramps.
- Fully welded and hot dip galvanised body
- Reinforced chassis & hinges
- Greasable rocker roller suspension
- Electric brake on 4 wheels
8×5 Heavy Duty Galvanised Tilt Plant Trailer Tandem Axle ATM 3200KG
Features
- ATM 3200kg
- Free 8” jockey wheel
- 3mm chassis and 4mm drawbar
- 8 tie down anchors are welded all the way around
- Tipping design allow to have better angle
- Heavy duty drop down ramps.
- Fully welded and hot dip galvanised body
- Reinforced chassis & hinges
- Greasable rocker roller suspension
- Electric brake on 4 wheels
Specifications
| ATM |
3200 KG |
| Internal Size |
2420x1510mm |
| External Size |
4800 x 2100mm |
| Draw-bar |
1900mm 100x50x4.0mm Tube |
| Chassis |
100x50x3.0mm Tube |
| Finish |
Hot Dipped Galvanized ( Rust Free ) |
| Side |
220 mm High Steel Frame |
| Floor |
Heavy Duty Mesh Floor |
| Jockey Wheel |
8″ Steel Rim Swing Up |
| Wheels and Tyres |
Brand New 15″ 195/R15LT Light Truck; Sunraysia Style with 6 Studs Pattern |
| Axle |
50 x 50 mm Square Solid With Heavy Duty Parallel Bearings |
| Suspension |
Heavy Duty Greasable Rocker Roller Suspension |
| Spring |
Heavy Duty 7 Leaf Eye to Eye Spring |
| Coupling |
50mm ADR Approved Australia Standard with Grease Nipples |
| Connection Plug |
Round or Flat 7 Pin Plug |
| Safety Chain |
13 mm |
| Brake |
Electric Brakes on All 4 Wheels with Breakaway Unit |
| Lights |
LED Set |
